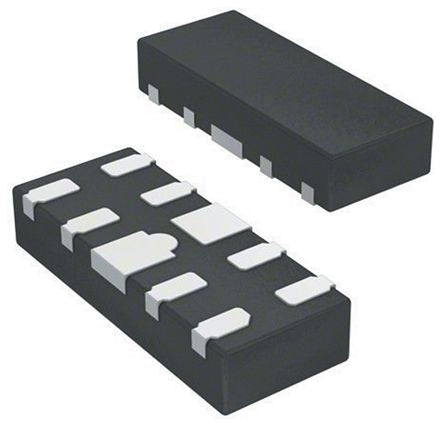

Texas Instruments SN65LVDS4RSET, LVDS Receiver LVCMOS, LVTTL, 10-Pin, UQFN [SN65LVDS4RSET]; 162-8329
0₫
Mã kho: 1628329
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Input Type | LVDS |
| Output Type | LVCMOS, LVTTL |
| Transmission Data Rate | 500Mbps |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | UQFN |
| Pin Count | 10 |
| Differential Input High Threshold Voltage | 50mV |
| Differential Input Low Threshold Voltage | -50mV |
| Dimensions | 2.05 x 1.55 x 0.55mm |
| Height | 0.55mm |
| Length | 2.05mm |
| Maximum Operating Supply Voltage | 1.98 V, 2.75 V, 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 1.62 V, 2.25 V, 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Width | 1.55mm |
