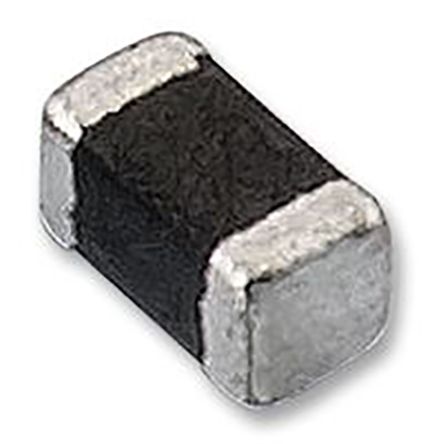

Wurth Elektronik Ferrite Bead, 1 x 0.5 x 0.5mm (0402), 10Ω impedance at 100 MHz, 15Ω impedance at 1 GHz [7427927110]; 144-9748
0₫
Mã kho: 1449748
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Package Type | 402 |
| Impedance at 100 MHz | 10Ω |
| Impedance at 1 GHz | 15Ω |
| Current Rating | 500mA |
| Type | Ferrite Bead |
| Dimensions | 1 x 0.5 x 0.5mm |
| Length | 1mm |
| Depth | 0.5mm |
| Height | 0.5mm |
| Material | Ferrite |
| Application | Data Line Filter, Uncoupling of Distribution Voltage |
| Series | WE-CBF |
| Maximum DC Resistance | 50mΩ |
