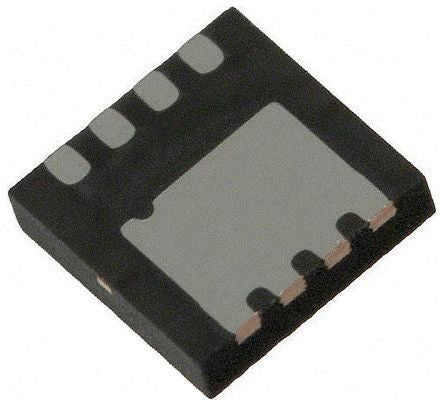

FDMC510P P-Channel MOSFET, 54 A, 20 V PowerTrench, 8-Pin MLP ON Semiconductor [FDMC510P]; 124-1326
0₫
Mã kho: 1241326
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 54 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | MLP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 17 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 41 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Width | 3.3mm |
| Minimum Operating Temperature | -55 °C |
| Height | 0.75mm |
| Typical Gate Charge @ Vgs | 83 nC @ 4.5 V |
| Transistor Material | Si |
| Length | 3.3mm |
| Maximum Operating Temperature | +150 °C |
| Series | PowerTrench |
