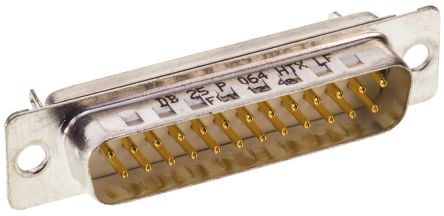

Amphenol FCI Panel Mount, 25 Pin Standard D-Sub D-sub Connector Plug, Shell Size B [DB25P064HTXLF]; 121-7468
by Amphenol FCI
0₫
Mã kho: 1217468
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.76mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | B |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 52.65mm |
| Width | 12.17mm |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold over Nickel |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Copper Alloy |
