Brand:
Panduit

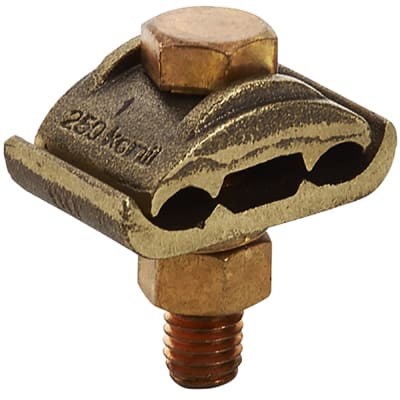

Panduit Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud [GBC4300-12-X]; PAL588
Panduit Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud [GBC4300-12-X]; PAL588
Regular price
0 VND
Regular price
Sale price
0 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Grounding Bonding / Grounding Mechanical Connectors / Flat Surface Grounding Clamps: Panduit GBC4300-12-X
MÔ TẢ SẢN PHẨM
Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud
_THÔNG SỐ KỸ THUẬT:
| Sub Brand | NA |
| Product Type | Grounding Clamp |
| Material | Copper Alloy |
| Maximum Compatible Conductor Size (AWG SOL) | NA |
| Maximum Compatible Conductor Size (AWG STR) | NA |
| Maximum Compatible Conductor Size (AWG) | NA |
| Maximum Compatible Conductor Size (kcmil) | 300 |
| Hex Size (In.) | 3/4 |
| Minimum Compatible Conductor Size (AWG SOL) | NA |
| Minimum Compatible Conductor Size (AWG STR) | 4 |
| Minimum Compatible Conductor Size (AWG) | NA |
| Overall Length (In.) | 2.16 |
| Overall Length (mm) | 55 |
| Overall Width (In.) | 1.38 |
| Overall Width (mm) | 35 |
| Overall Height (In.) | 2.82 |
| Overall Height (mm) | 72 |
| Standards Met | cULus Listed to UL467/CSA 22.2 No.4 for Direct Burial Grounding |
| Application | Utility/Ground Grid |
