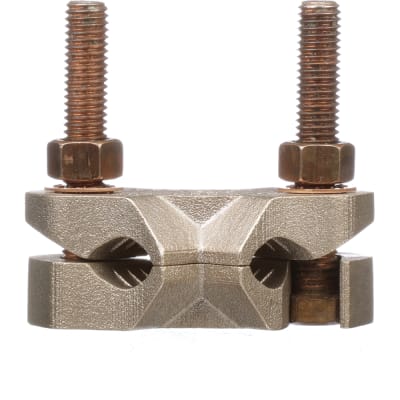

Panduit Mechanical Grounding Cross Connector For Wire Ranges #8 - #4 SOL/STR AWG [GXC4-4]; PAL968

Name: Panduit Mechanical Grounding Cross Connector For Wire Ranges #8 - #4 SOL/STR AWG [GXC4-4]; PAL968
Brand: Panduit
SKU: PAL968
Price: 6754500.0 VND
Availability: InStock

by Panduit

6.754.500₫

(Giá chưa VAT).

Mã kho: PAL968

Mã nhà sản xuất: GXC4-4

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GXC4-4

MÔ TẢ SẢN PHẨM

Mechanical Grounding Cross Connector For Wire Ranges #8 - #4 SOL/STR AWG

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	#8-#4 STR/SOL, Run & Tap
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	NA
Number Of Wires	2
Overall Length (In.)	1.85
Overall Length (mm)	47.1
Overall Width (In.)	2.26
Overall Width (mm)	57.4
Overall Height (In.)	2.24
Overall Height (mm)	56.8
Bolt Diameter (In.)	3/8
Hex Size (In.)	9/16"
Application	Utility/Ground Grid
Standards Met	cULus 486 & 467 Listed for Power & Grounding, DB Rated
Product Type	Grounding mechanical connector
