Brand:
Panduit

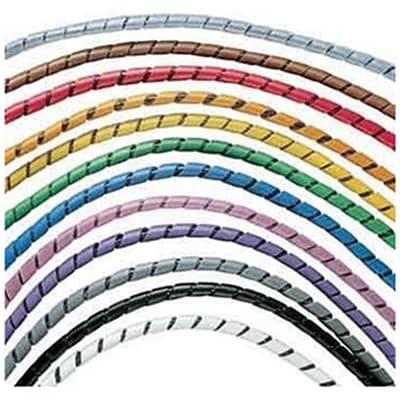

Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', flame retardant polyethylene, natural. [T12FR-CY]; PAP134
Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', flame retardant polyethylene, natural. [T12FR-CY]; PAP134
Regular price
2.143.820 VND
Regular price
Sale price
2.143.820 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T12FR-CY
MÔ TẢ SẢN PHẨM
The T12FR-CY Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Installation t
_THÔNG SỐ KỸ THUẬT:
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Note | T12FR-CY replaces T12FR-C |
| Product Type | Spiral Wrap |
| Color | Natural |
| Environment | Indoor |
| Flammability Rating | UL94V-0 |
| Includes | Installation Tool |
| Material | Flame Retardant Polyethylene |
| Resistance Properties | Abrasion Resistance; Flame Retardant |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.0625 |
| Minimum Bundle Diameter (mm) | 1.6 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3.2 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94V-0 |
| Wall Thickness (In.) | 0.03 |
| Wall Thickness (mm) | 0.76 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable. |
