Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE12PFR-MR0
MÔ TẢ SẢN PHẨM

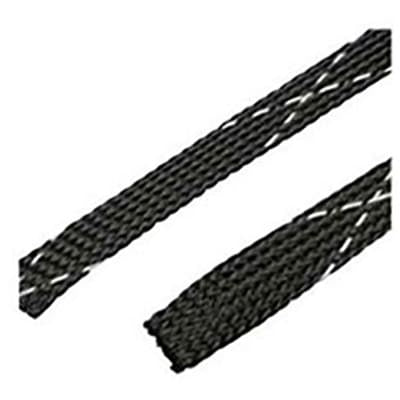

The SE12PFR-MR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible. The open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94°F – 257°F (
_THÔNG SỐ KỸ THUẬT:
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Material | Flame Retardant Polyethylene Terephthalate (PET) |
| Flammability Rating | UL 1441 VW-1 |
| Color | Black |
| Resistance Properties | Flame-Retardant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint |
| Maximum Diameter (In.) | 0.25 |
| Maximum Diameter (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.12 |
| Nominal Diameter (mm) | 3.2 |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 304.8 |
| Product Type | Braided Expandable Sleeving |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
| Maximum Bundle Diameter (In.) | 0.25 |
| Maximum Bundle Diameter (mm) | 6.4 |
| Minimum Bundle Diameter (In.) | 0.094 |
| Minimum Bundle Diameter (mm) | 2.4 |
