Brand:
Panduit

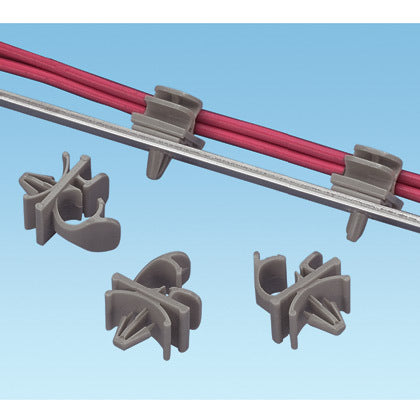

Panduit Latching wire clip, push barb mount, .19" (4.8mm) bundle, gray, standard package. [LWC19-H25-C14]; PAN144
Panduit Latching wire clip, push barb mount, .19" (4.8mm) bundle, gray, standard package. [LWC19-H25-C14]; PAN144
Regular price
0 VND
Regular price
Sale price
0 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Clamps Clips: Panduit LWC19-H25-C14
MÔ TẢ SẢN PHẨM
Latching wire clip, push barb mount, .19" (4.8mm) bundle, gray, standard package.
_THÔNG SỐ KỸ THUẬT:
| Application | Route and Secure Cords and Cables |
| Product Type | Latching Wire Clip |
| Body Material | Nylon 6.6 |
| Color | Gray |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.19 |
| Maximum Bundle Diameter (mm) | 4.8 |
| Maximum Compatible Panel Thickness (In.) | 0.1 |
| Maximum Compatible Panel Thickness (mm) | 2.7 |
| Mount Method | Push Barb |
| Mounting Hole Diameter (In.) | 0.23 |
| Mounting Hole Diameter (mm) | 6 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Overall Length (In.) | 0.85 |
| Overall Length (mm) | 21.6 |
| Overall Width (In.) | 0.51 |
| Overall Width (mm) | 13 |
| Standards Met | RoHS Complaint |
