Brand:
Panduit
Panduit Wire Routing, Management & Protection, [HCMP06C12-M20]; PAH859
Panduit Wire Routing, Management & Protection, [HCMP06C12-M20]; PAH859
Regular price
4.820 VND
Regular price
Sale price
4.820 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Clamps Clips: Panduit HCMP06C12-M20
MÔ TẢ SẢN PHẨM

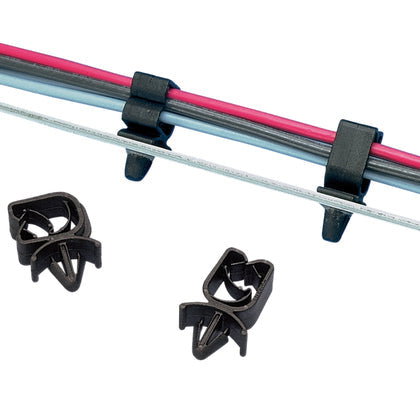

Harness clip, winged push barb mount, horizontal, .24 "- .47" (5.9mm - 12.5mm) bundle range, black, bulk package.
_THÔNG SỐ KỸ THUẬT:
| Application | Integral “Spring” Holds Wire Bundles Tightly |
| Product Type | Harness Clip |
| Body Material | Nylon 6.6 |
| Color | Black |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.47 |
| Maximum Bundle Diameter (mm) | 12 |
| Maximum Compatible Panel Thickness (In.) | 0.11 |
| Maximum Compatible Panel Thickness (mm) | 3 |
| Mount Method | Push Barb |
| Mounting Hole Diameter (In.) | 0.28 |
| Mounting Hole Diameter (mm) | 7.2 |
| Overall Height (In.) | 1.09 |
| Overall Height (mm) | 27.9 |
| Overall Length (In.) | 0.39 |
| Overall Length (mm) | 10 |
| Overall Width (In.) | 0.79 |
| Overall Width (mm) | 20.2 |
| Standards Met | RoHS Complaint |
| Part Features | Available in vertical and horizontal loading configurations with Integral “spring” holds wire bundles tightly |
