Brand:
Panduit
Panduit ST43 Series Professional Grade PVC Electrical Tape is a 0.18 mm (7 mil) is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. The ST43 series product is flame retar
Panduit ST43 Series Professional Grade PVC Electrical Tape is a 0.18 mm (7 mil) is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. The ST43 series product is flame retar
Regular price
167.900 VND
Regular price
Sale price
167.900 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Routing Management Protection / Electrical Tape / Pvc Electrical Tape: Panduit ST43-075-66BK
MÔ TẢ SẢN PHẨM

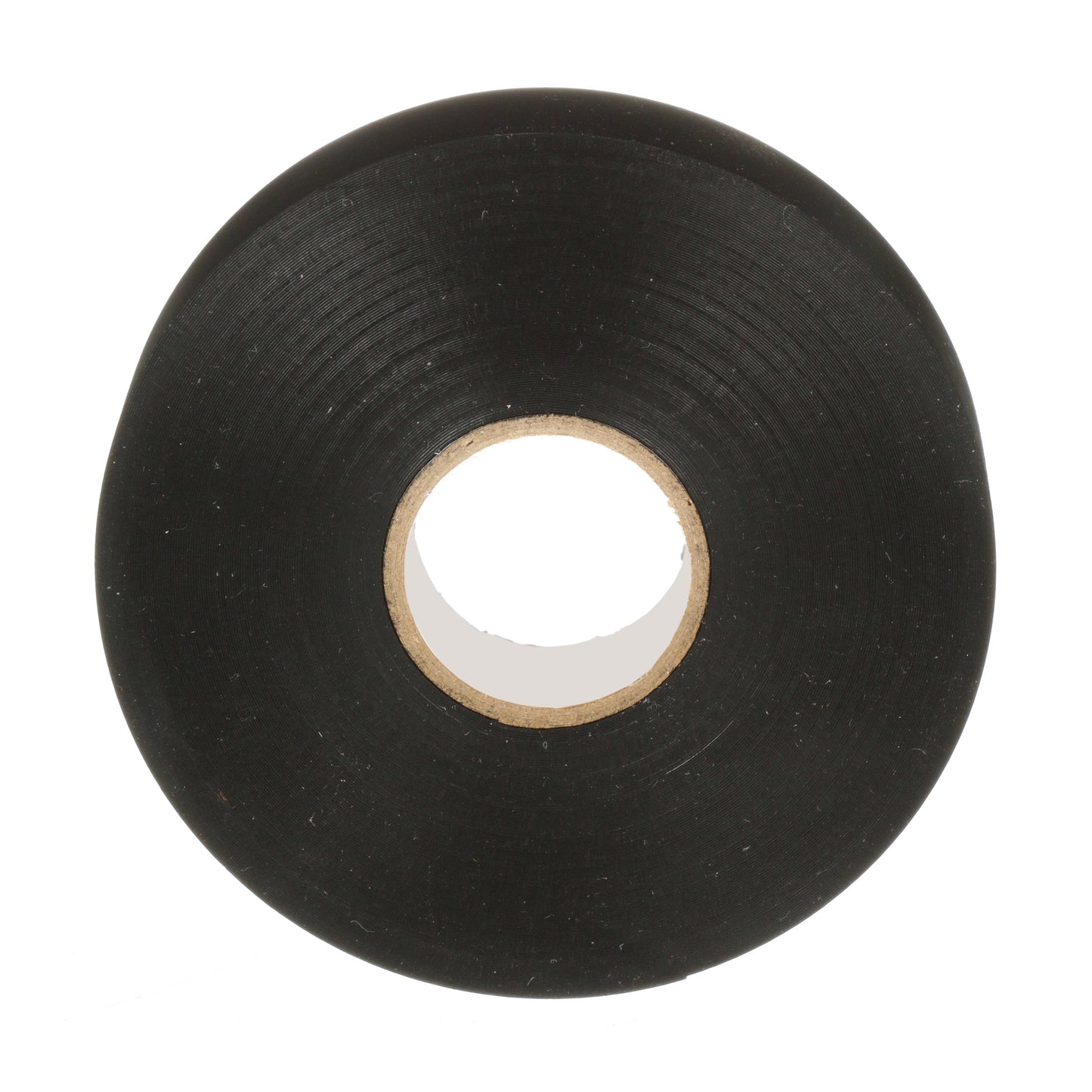

StrongHold ST43-075-66BK Professional Grade PVC Electrical Tape is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It has excellent elasticity and insulating properties and it is .75" x 66' x .007" in size. It is b
_THÔNG SỐ KỸ THUẬT:
| Sub Brand | StrongHold™ |
| Product Type | Professional Grade |
| Color | Black |
| Material | Polyvinyl Chloride (PVC) |
| Overall Thickness (In.) | 0.007 |
| Overall Thickness (mm) | 0.18 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Overall Length (ft.) | 66 |
| Overall Length (m) | 20 |
| Tensile at Break (N/cm) | 30 |
| Tensile at Break (kg/mm) | 0.31 |
| Elongation at Break (%) | 260 |
| Adhesion to Steel (N/cm) | 2.2 |
| Adhesion to Steel (oz/in) | 20.1 |
| Adhesion to Backing (N/cm) | 2.2 |
| Adhesion to Backing (oz/in) | 20.1 |
| Flammability Rating | UL 510 Flame Retardant |
| Flagging (mm) | 0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -18 |
| Minimum Operating Temperature (°F) | 0 |
| Dielectric Strength Standard (kV) | 8 |
| Dielectric Strength Wet (90%) (kV) | 7.2 |
| Insulation Resistance (MΩ) | 1.00E+06 |
| Standards Met | Meets ASTM D-3005, Type 1; EN 60454-3-1, Type 11; UL 510 CSA C 22.2 No 197; Meets 2000/53/EC and RoHS 2011/65/EU directives |
| Compliance Certifications | UL Listed/CSA Certified |
| Environment | Indoor/Outdoor |
| Application | Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair |
| Durability (yr) | 5 |
| Tape Style | Professional Grade |
| Adhesive Backing Material | Rubber |
